Description:
Specification:
| Model | HK-290V / VA Vario |
| Distance between centers | 700mm |
| Swing over bed | 290mm |
| Swing over cross slide | 180mm |
| With of bed | 182 |
| Taper of spindle | MT5 |
| Spindle bore | 38mm |
| Spindle speed type | variable speed |
| Spindle speed | 50-1800rpm |
| Range of cross feed | 0.01-0.10mm/rev |
| Range of longitudinal feed | 0.085-0.832mm/rev |
| Range of imperial thread | 8-56 T.P.I. |
| Range of metric thread | 0.2-3.5mm |
| Top slide travel | 65mm |
| Cross slide travel | 160mm |
| Tailstock quill travel | 70mm |
| Taper of tailstock quill | MT3 |
| Motor power | 1.1kW/750W, variable |
| Packing dimension (L*W*H) | 1450*700*680mm |
| N.W. | 260kg |
Standard accessories：
Splash guard
Chip tray
Operation tools
Optional accessories:
Four-Jaw chuck
Follow rest
Steady rest
Face plate
Stand

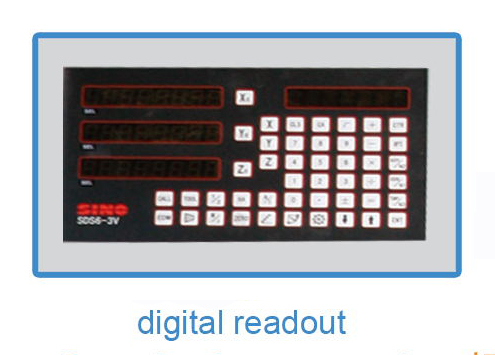

Digital readout
