Description:
Technical Data:
| Model | HK-180*300 Vario | HK-210*400 Vario |
| Distance between centers | 300mm | 400mm |
| Swing over bed | 180mm | 210mm |
| Width of bed | 100mm | |
| Spindle taper | MT3 | |
| Spindle bore | 21mm | |
| Spindle speed | 50-2500rpm | |
| Lognitudinal feed | 0.08-0.16mm | |
| Imperial thread | 10-44TPI | |
| Meteric thread | 0.5-3mm | |
| Top slide travel | 55mm | |
| Cross slide travel | 75mm | |
| Tailstock quill travel | 65mm | |
| Taper of tailstock quill | MT2 | |
| Max dimension of tool | 10mm | |
| Motor power | 600W | |
| Packing size (L*W*H) | 800*480*450mm | 910*480*470mm |
| N.W./G.W. | 60kg/80kg | 76kg/96kg |
Standard accessories:
Speed display
3-jaw chuck 100mm
Splash guard
Chip tray
Safety chuck guard
Dead centers MT2.MT3
Change gear kits
Operation tools
Optional accessories:
4-jaw chuck 100mm
Follow rest
Steady rest
Face plate
Stand
Live center MT2
Turning tools
Quick change tool post

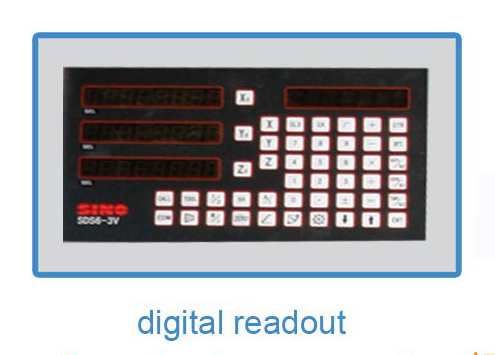

Digital readout
