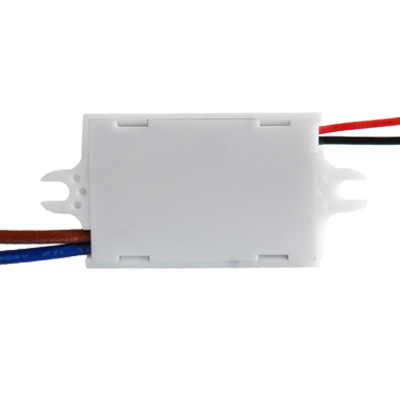

SINOBASE LED driver in mini-size plastic case (6-12W, 100-240Vac)
with 50000 hours warranty, optional for water-proof version
The SINOBASE SILA***BG2 Series is a compact, high-performance LED driver designed for versatile lighting applications. With a wide input range (100–240Vac), high precision constant current, and multiple protection features, it ensures long-lasting reliability for both indoor and outdoor luminaires.
Features:
✅ Ultra-compact size for flexible luminaire integration

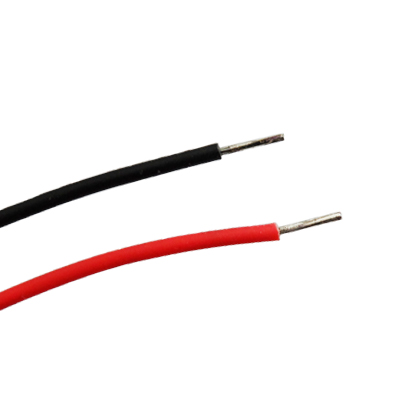

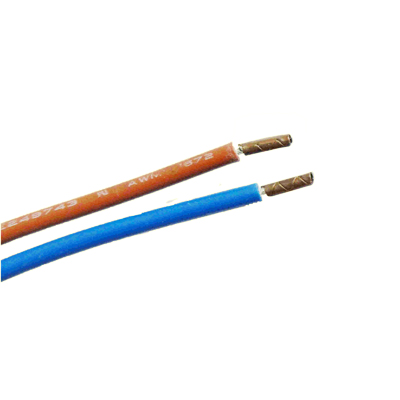

✅ Easy installation with tinned/coated cables
✅ Constant current mode for stable LED performance
✅ Built-in protections: SELV, short circuit, over-current, over-voltage
✅ High precision output current
✅ Wide input voltage: 100–240V AC
✅ Power factor ≥ 0.7
✅ Optional waterproof (potting) version
| Power | Model | Input Voltage (Vac) | Output Voltage (Vdc) | Output Current (A) | Max Power (W) | Size (L×W×H, mm) |
|---|---|---|---|---|---|---|
| 6–12W | SILA60020BG2 | 100–240 | 30–60 | 0.20 | 12 | 69×35×23.5 |
| 6–12W | SILA48025BG2 | 100–240 | 24–48 | 0.25 | 12 | 69×35×23.5 |
| 6–12W | SILA40030BG2 | 100–240 | 20–40 | 0.30 | 12 | 69×35×23.5 |
| 6–12W | SILA34035BG2 | 100–240 | 17–34 | 0.35 | 11.9 | 69×35×23.5 |
| 6–12W | SILA30040BG2 | 100–240 | 15–30 | 0.40 | 12 | 69×35×23.5 |
| 6–12W | SILA27045BG2 | 100–240 | 13–27 | 0.45 | 12.15 | 69×35×23.5 |
| 6–12W | SILA24050BG2 | 100–240 | 12–24 | 0.50 | 12 | 69×35×23.5 |
| 6–12W | SILA22055BG2 | 100–240 | 11–22 | 0.55 | 12.1 | 69×35×23.5 |
| 6–12W | SILA20060BG2 | 100–240 | 10–20 | 0.60 | 12 | 69×35×23.5 |
| 6–12W | SILA18065BG2 | 100–240 | 9–18 | 0.65 | 11.7 | 69×35×23.5 |
| 6–12W | SILA17070BG2 | 100–240 | 8–17 | 0.70 | 11.9 | 69×35×23.5 |
Notes:
Current step: 50mA (custom models available)
Waterproof glue potting optional
Certification：TUV, CE, LVD, EMC, CB, SAA, ROHS, ERP
In preparation, if not already printed on product label
Application：
Design for all applicable LED luminaries, such as wall light, garden light, bollards, recessed luminaries, and other availble luminaries, etc...
Mechanical specification：
